Presentation Layer

A layer that converts one data format to another so both the source and destination understand (Translates from one format to another and also called the translation layer). Sometimes, the presentation layer is not mentioned or used; this is because some of the previous functions are performed in the application layer. It depends on the protocol stack implementations.

This layer has different optional functions:

Encryption
- The process of converting plaintext into ciphertext using a secret key
Decryption
- The process of converting the ciphertext back to the plain text using the same secret key
Compression
- The process of reducing the number of symbols required to represent data
Decompression
- The process of restoring the compressed data to its original form
Formatting
- The process of converting the data into a standardized format that can be easily transmitted

GNU ZIP (GZIP)

A compression technology that's commonly used for transferring data over the internet, it's based on the DEFLATE algorithm and its magic header is 1f 8b

To compress data using GZIP

from gzip import compress
compressed = compress(b"Test")
print("Output: {}\nHex: {}".format(compressed,compressed.hex(' ')))

Output

Output: b'\x1f\x8b\x08\x00\xc0\xc9\xc2f\x02\xff\x0bI-.\x01\x002\xd1Mx\x04\x00\x00\x00'
Hex: 1f 8b 08 00 c0 c9 c2 66 02 ff 0b 49 2d 2e 01 00 32 d1 4d 78 04 00 00 00

To decompress data using GZIP

from gzip import decompress
compressed = decompress(b'\x1f\x8b\x08\x00\xc0\xc9\xc2f\x02\xff\x0bI-.\x01\x002\xd1Mx\x04\x00\x00\x00')
print("Output: {}\nHex: {}".format(compressed,compressed.hex(' ')))

Output

Output: b'Test'
Hex: 54 65 73 74

PCAP Example

The client requested web content from the server and indicated that it accepts GZIP content, the server responds with content that is compressed in GZIP, the client receives the GZIP and gets handled in the presentation layer

Client Sends Data

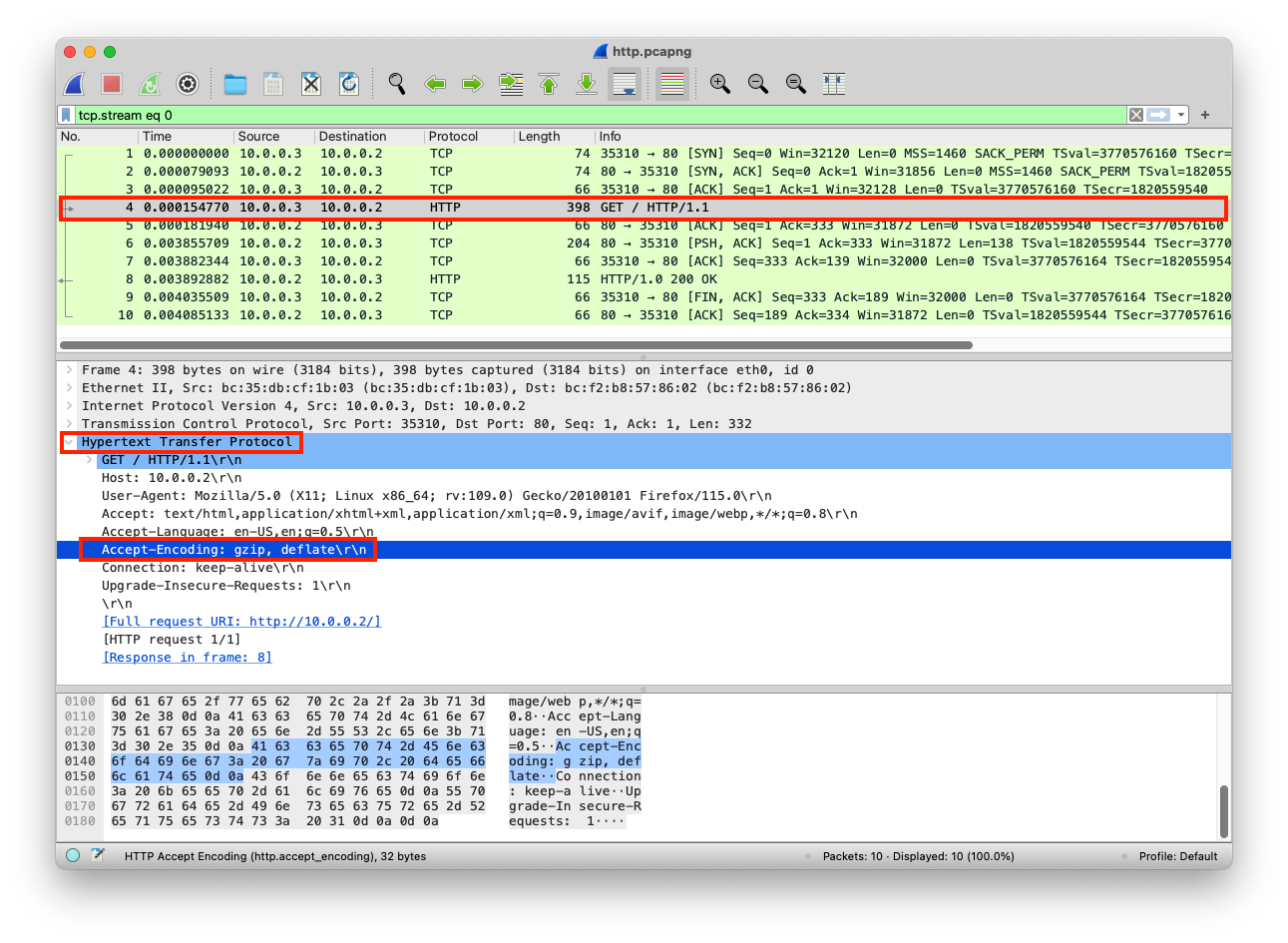

The client uses the HTTP Accept-Encoding header to indicate that GZIP is allowed

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Application Layer	HTTP	Data	GET / HTTP/1.1 Host: 10.0.0.2 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Connection: keep-alive Upgrade-Insecure-Requests: 1
Presentation Layer	Raw	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Session Layer	Socket	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Transport Layer	TCP	Segments	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80
Network Layer	IP	Packets	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Data Link Layer	Ethernet	Frames	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100

Server Receives Data

The server receives the client's HTTP Accept-Encoding request

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100
Data Link Layer	Ethernet	Frames	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Network Layer	IP	Packets	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Transport Layer	TCP	Segments	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80
Session Layer	Socket	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Presentation Layer	Raw	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Application Layer	HTTP	Data	GET / HTTP/1.1 Host: 10.0.0.2 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Connection: keep-alive Upgrade-Insecure-Requests: 1

from http.server import SimpleHTTPRequestHandler
from socketserver import TCPServer
from io import BytesIO
from gzip import GzipFile
from datetime import datetime
from contextlib import suppress

with suppress(Exception):
    from netifaces import gateways, ifaddresses, AF_INET, AF_LINK
    print("The default network interface is: ",gateways()['default'][AF_INET][1])
    print("The default network interface mac address is: ",ifaddresses(gateways()['default'][AF_INET][1])[AF_LINK])

class Server(SimpleHTTPRequestHandler):
    def do_GET(self):
        compressed = False
        content = b'<HTML><h1>Hello World!</h1></HTML>'
        if len(content) > 0:
            if 'accept-encoding' in self.headers:
                if 'gzip' in self.headers['accept-encoding']:
                    bytes_ = BytesIO()
                    with GzipFile(fileobj=bytes_, mode='w', compresslevel=5) as f:
                        f.write(content)
                        f.close()
                        content = bytes_.getvalue()
                        compressed = True
        self.send_response(200)
        if compressed:
            self.send_header('content-encoding', 'gzip')
        self.send_header('content-length', len(content))
        self.end_headers()
        self.wfile.write(content)

    def log_message(self, format, *args):
        print("[{}] - {}:{} - {} {}".format(datetime.now().strftime("%m/%d/%Y %H:%M:%S"), self.client_address[0],self.client_address[1],args[0],args[1]))

TCPServer(('0.0.0.0', 80), Server).serve_forever()

Server Sends Data

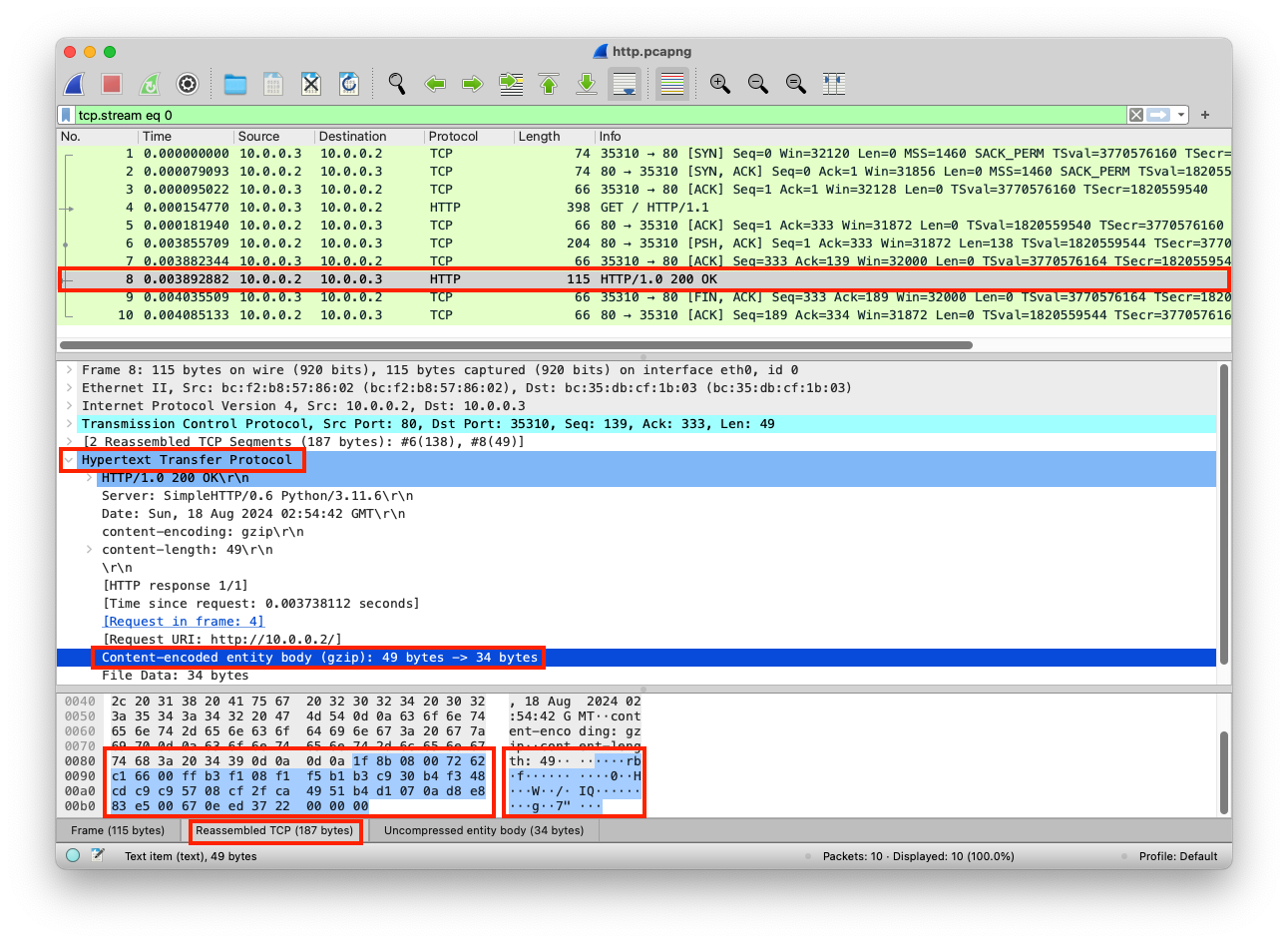

The server compresses and sends the compressed web content

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Application Layer	HTTP	Data	HTTP/1.0 200 OK Server: SimpleHTTP/0.6 Python/3.11.6 Date: Sun, 18 Aug 2024 02:54:42 GMT content-encoding: gzip content-length: 49 <HTML><h1>Hello World!</h1></HTML>
Presentation Layer	GZIP	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Session Layer	Socket	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Transport Layer	TCP	Segments	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310
Network Layer	IP	Packets	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3
Data Link Layer	Ethernet	Frames	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3	Src MAC: bc:f2:b8:57:86:02 Dst MAC: bc:35:db:cf:1b:03
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100

from http.server import SimpleHTTPRequestHandler
from socketserver import TCPServer
from io import BytesIO
from gzip import GzipFile
from datetime import datetime
from contextlib import suppress

with suppress(Exception):
    from netifaces import gateways, ifaddresses, AF_INET, AF_LINK
    print("The default network interface is: ",gateways()['default'][AF_INET][1])
    print("The default network interface mac address is: ",ifaddresses(gateways()['default'][AF_INET][1])[AF_LINK])

class Server(SimpleHTTPRequestHandler):
    def do_GET(self):
        compressed = False
        content = b'<HTML><h1>Hello World!</h1></HTML>'
        if len(content) > 0:
            if 'accept-encoding' in self.headers:
                if 'gzip' in self.headers['accept-encoding']:
                    bytes_ = BytesIO()
                    with GzipFile(fileobj=bytes_, mode='w', compresslevel=5) as f:
                        f.write(content)
                        f.close()
                        content = bytes_.getvalue()
                        compressed = True
        self.send_response(200)
        if compressed:
            self.send_header('content-encoding', 'gzip')
        self.send_header('content-length', len(content))
        self.end_headers()
        self.wfile.write(content)

    def log_message(self, format, *args):
        print("[{}] - {}:{} - {} {}".format(datetime.now().strftime("%m/%d/%Y %H:%M:%S"), self.client_address[0],self.client_address[1],args[0],args[1]))

TCPServer(('0.0.0.0', 80), Server).serve_forever()

Client Receives Data

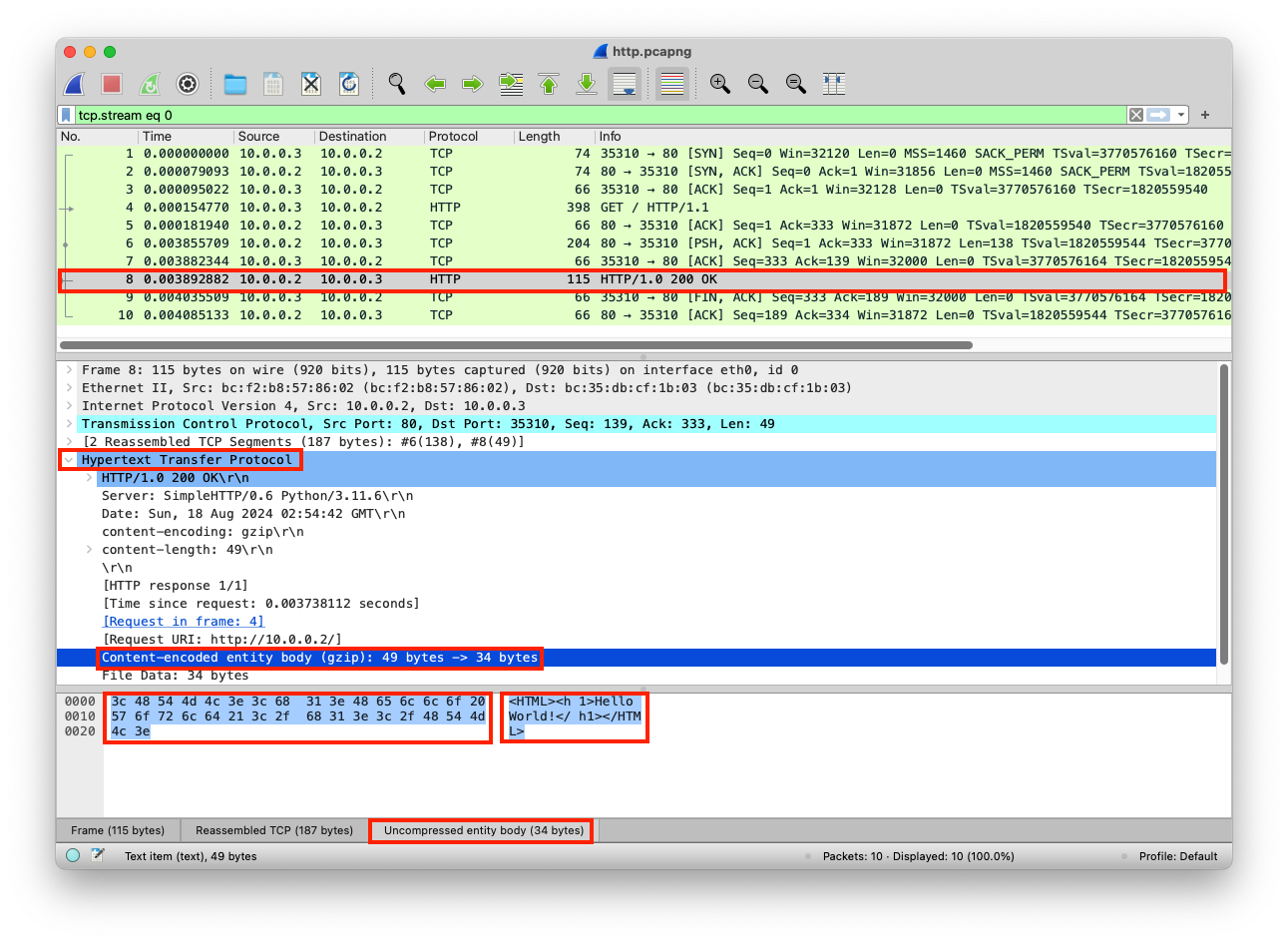

Wireshark decompresses the content (The web browser does that as well in the background, and there will be a tab at the bottom that has the decompressed content)

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100
Data Link Layer	Ethernet	Frames	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3	Src MAC: bc:f2:b8:57:86:02 Dst MAC: bc:35:db:cf:1b:03
Network Layer	IP	Packets	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3
Transport Layer	TCP	Segments	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310
Session Layer	Socket	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Presentation Layer	GZIP	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Application Layer	HTTP	Data	HTTP/1.0 200 OK Server: SimpleHTTP/0.6 Python/3.11.6 Date: Sun, 18 Aug 2024 02:54:42 GMT content-encoding: gzip content-length: 49 <HTML><h1>Hello World!</h1></HTML>
