Session Layer

A layer that enables connection between nodes, it opens and closes communication between the two devices, the communication channels are called sessions.

Socket

An interface the processes use to interact with the transport layer

Active
- The client initiates a TCP connection.
  - Create a socket
  - Connect to a server
Passive
- The server is waiting for SYN requests from clients who want to connect
  - Create a socket
  - Bind IP and Port
  - Listen to connections
  - Accept a connection

Authentication

Ensuring the claimed identity is valid (Verifying someone's or an object's identity)

Authorization

Determining if someone or an object has permission to do something after their identity is verified

Cyberattacks

Session Hijacking
- A threat actor accesses the user's account using a stolen or leaked valid (existing) session identifier
Session Fixation
- A threat actor may trick a user into using a known session identifier to log in. after logging in, the session identifier is used to gain access to the user's account.
Session Replay
- A threat actor may re-use a stolen or leaked session identifier to access the user's account

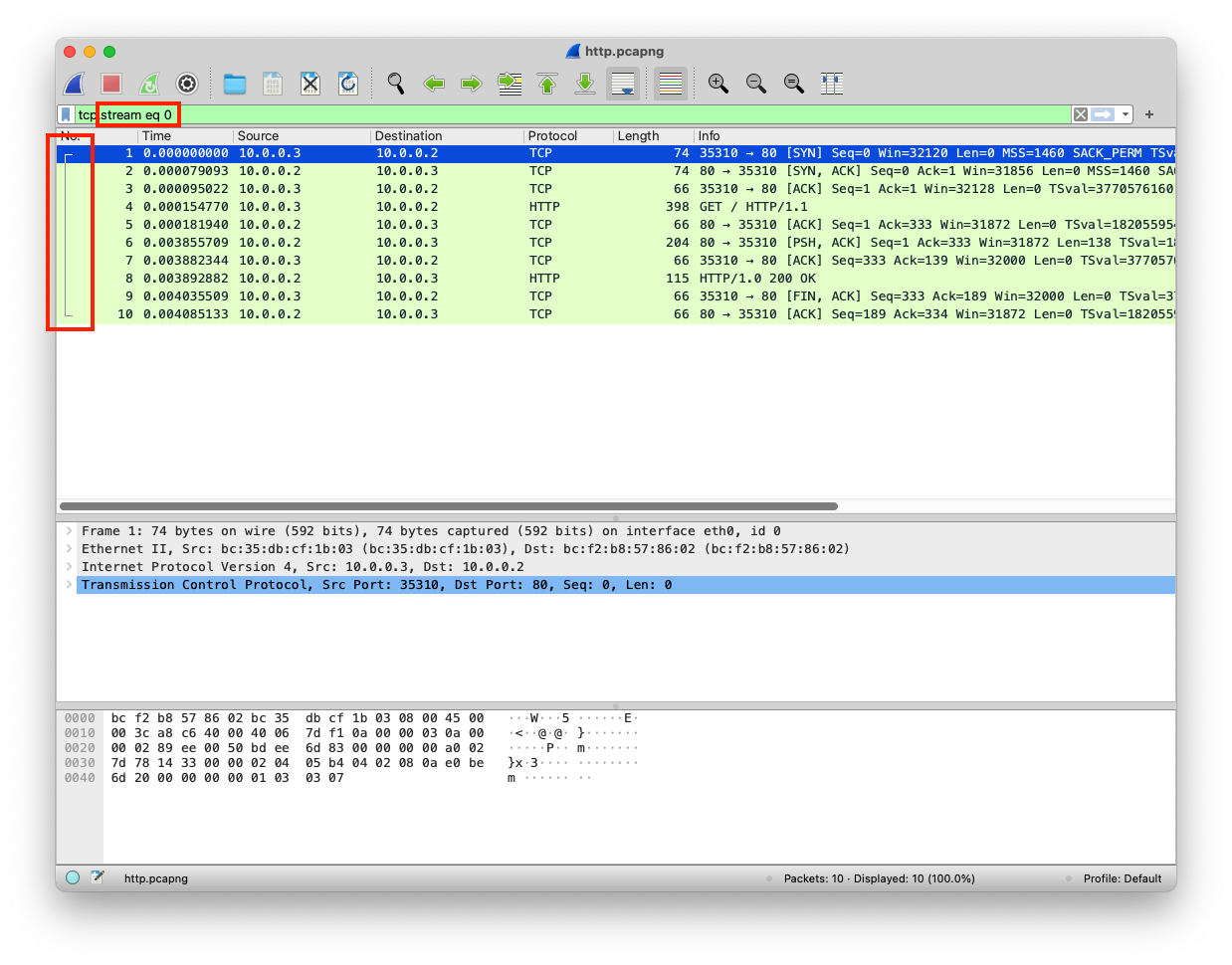

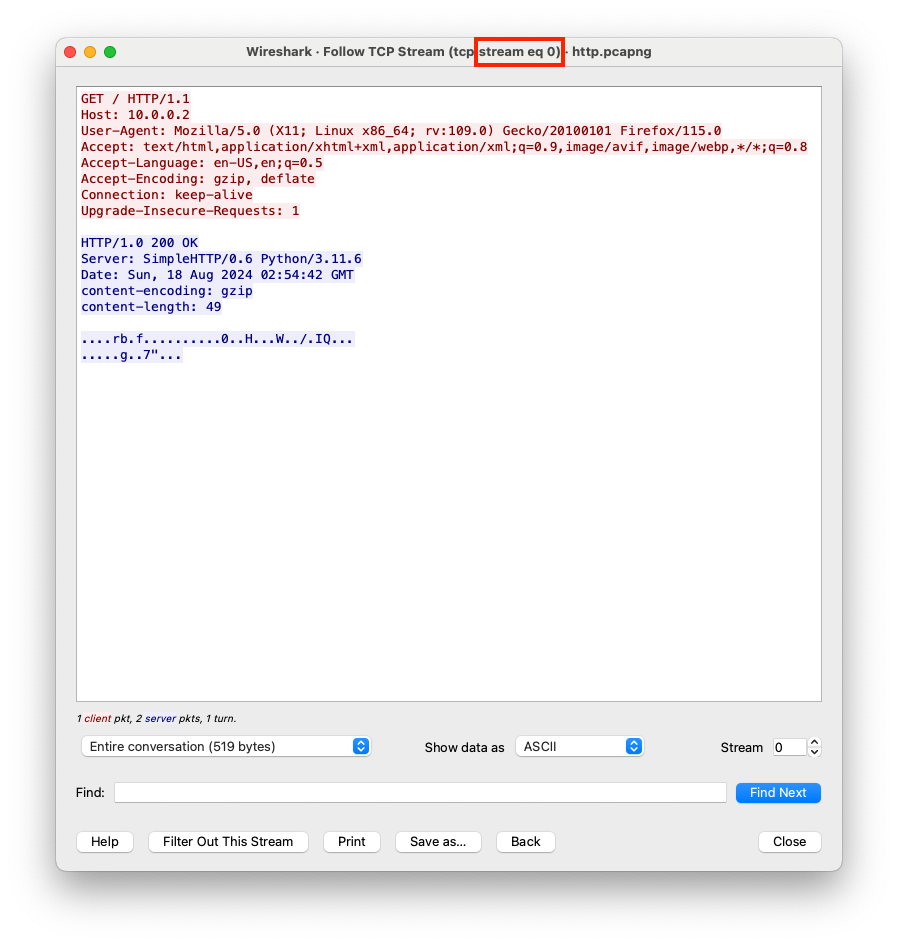

PCAP Example

The client requested web content from the server, the client created a session for handling the connection.

Client initiates Session

The client browser creates an active socket to communicate with the server

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Application Layer	HTTP	Data	GET / HTTP/1.1 Host: 10.0.0.2 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Connection: keep-alive Upgrade-Insecure-Requests: 1
Presentation Layer	Raw	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Session Layer	Socket	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Transport Layer	TCP	Segments	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80
Network Layer	IP	Packets	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Data Link Layer	Ethernet	Frames	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100

Server Accepts Session

The server has a passive socket that accepts the client's connection

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100
Data Link Layer	Ethernet	Frames	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Network Layer	IP	Packets	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Transport Layer	TCP	Segments	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1	Src Port: 35310 Dst Port: 80
Session Layer	Socket	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Presentation Layer	Raw	Data	GET / HTTP/1.1\r\nHost: 10.0.0.2\r\nUser-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0\r\nAccept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8\r\nAccept-Language: en-US,en;q=0.5\r\nAccept-Encoding: gzip, deflate\r\nConnection: keep-alive\r\nUpgrade-Insecure-Requests: 1
Application Layer	HTTP	Data	GET / HTTP/1.1 Host: 10.0.0.2 User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0 Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,/;q=0.8 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Connection: keep-alive Upgrade-Insecure-Requests: 1

from http.server import SimpleHTTPRequestHandler
from socketserver import TCPServer
from io import BytesIO
from gzip import GzipFile
from datetime import datetime
from contextlib import suppress

with suppress(Exception):
    from netifaces import gateways, ifaddresses, AF_INET, AF_LINK
    print("The default network interface is: ",gateways()['default'][AF_INET][1])
    print("The default network interface mac address is: ",ifaddresses(gateways()['default'][AF_INET][1])[AF_LINK])

class Server(SimpleHTTPRequestHandler):
    def do_GET(self):
        compressed = False
        content = b'<HTML><h1>Hello World!</h1></HTML>'
        if len(content) > 0:
            if 'accept-encoding' in self.headers:
                if 'gzip' in self.headers['accept-encoding']:
                    bytes_ = BytesIO()
                    with GzipFile(fileobj=bytes_, mode='w', compresslevel=5) as f:
                        f.write(content)
                        f.close()
                        content = bytes_.getvalue()
                        compressed = True
        self.send_response(200)
        if compressed:
            self.send_header('content-encoding', 'gzip')
        self.send_header('content-length', len(content))
        self.end_headers()
        self.wfile.write(content)

    def log_message(self, format, *args):
        print("[{}] - {}:{} - {} {}".format(datetime.now().strftime("%m/%d/%Y %H:%M:%S"), self.client_address[0],self.client_address[1],args[0],args[1]))

TCPServer(('0.0.0.0', 80), Server).serve_forever()

Server Sends the Data

The server sends data to the client

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Application Layer	HTTP	Data	HTTP/1.0 200 OK Server: SimpleHTTP/0.6 Python/3.11.6 Date: Sun, 18 Aug 2024 02:54:42 GMT content-encoding: gzip content-length: 49 <HTML><h1>Hello World!</h1></HTML>
Presentation Layer	GZIP	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Session Layer	Socket	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Transport Layer	TCP	Segments	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310
Network Layer	IP	Packets	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3
Data Link Layer	Ethernet	Frames	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3	Src MAC: bc:f2:b8:57:86:02 Dst MAC: bc:35:db:cf:1b:03
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100

from http.server import SimpleHTTPRequestHandler
from socketserver import TCPServer
from io import BytesIO
from gzip import GzipFile
from datetime import datetime
from contextlib import suppress

with suppress(Exception):
    from netifaces import gateways, ifaddresses, AF_INET, AF_LINK
    print("The default network interface is: ",gateways()['default'][AF_INET][1])
    print("The default network interface mac address is: ",ifaddresses(gateways()['default'][AF_INET][1])[AF_LINK])

class Server(SimpleHTTPRequestHandler):
    def do_GET(self):
        compressed = False
        content = b'<HTML><h1>Hello World!</h1></HTML>'
        if len(content) > 0:
            if 'accept-encoding' in self.headers:
                if 'gzip' in self.headers['accept-encoding']:
                    bytes_ = BytesIO()
                    with GzipFile(fileobj=bytes_, mode='w', compresslevel=5) as f:
                        f.write(content)
                        f.close()
                        content = bytes_.getvalue()
                        compressed = True
        self.send_response(200)
        if compressed:
            self.send_header('content-encoding', 'gzip')
        self.send_header('content-length', len(content))
        self.end_headers()
        self.wfile.write(content)

    def log_message(self, format, *args):
        print("[{}] - {}:{} - {} {}".format(datetime.now().strftime("%m/%d/%Y %H:%M:%S"), self.client_address[0],self.client_address[1],args[0],args[1]))

TCPServer(('0.0.0.0', 80), Server).serve_forever()

Client Receives Data

The client receives the data within the session

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Physical Layer	Coax	Bits	01001000 01010100 01010100 01010000 00101111 00110001 00101110 00110000 00100000	01001000 01010100	01001000 01010100	01001000 01010100
Data Link Layer	Ethernet	Frames	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3	Src MAC: bc:f2:b8:57:86:02 Dst MAC: bc:35:db:cf:1b:03
Network Layer	IP	Packets	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3
Transport Layer	TCP	Segments	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...	Src Port: 80 Dst Port: 35310
Session Layer	Socket	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Presentation Layer	GZIP	Data	HTTP/1.0 200 OK\r\nServer: SimpleHTTP/0.6 Python/3.11.6\r\nDate: Sun, 18 Aug 2024 02:54:42 GMT\r\ncontent-encoding: gzip\r\ncontent-length: 49\r\n\r\n....rb.f..........0..H...W../.IQ........g..7"...
Application Layer	HTTP	Data	HTTP/1.0 200 OK Server: SimpleHTTP/0.6 Python/3.11.6 Date: Sun, 18 Aug 2024 02:54:42 GMT content-encoding: gzip content-length: 49 <HTML><h1>Hello World!</h1></HTML>
