Transport Layer

A layer that manages the transmission of data between node. It creates Transmission Control Protocol (TCP) or User Datagram Protocol (UDP) connections between nodes. Those protocols use ports for sending and receiving data from and to an application. The ports are assigned to processes using unique port numbers. The source port number has the port number of the sending application. The destination port has the port number of the receiving application. The source and destination ports are added to the segment.

Transmission Control Protocol (TCP)

A connection-based that allows processes to send data via a network and verify if it's delivered or not. The process must connect via a three-way handshake before sending and receiving data

Pros
- Reliable
- Error checking and recovery
Cons
- Slow
- Resource intensive
Uses
- File sharing
- Downloading
Flags
- SYN
  - Starts a connection (It's set at the beginning of TCP connection)
- ACK
  - Confirms that data or initiation request has been received
- RST
  - Aborts the connection immediately
- FIN
  - Aborts the connection gracefully
- PSH
  - Pushes the data to the application as soon as possible (No intermediate buffering)
- URG
  - Prioritizes the data (This flag is obsolete)

User Datagram Protocol (UDP)

A message-oriented that allows processes to send data via a network without verifying if it's delivered. It does not establish a connection before sending data

Pros
- Fast
- Simple
- Error checking (Optional)
Cons
- Does not have any error recovery
Uses
- Video streaming
- Real-time services
Flags
- None

*Note, UDP does have error checking but doesn't have any error-recovery

Logical Ports

A virtual connection point within an operating system that is assigned to a specific service and is used for sending and receiving data. Ports have a 16-bit logical address (0 to 65536). Ports under 1024 are called privileged ports and require elevated privileges to run services on them like webservers (This is defined differently based on the operating system)

Common Used Ports

File Transfer Protocol (ftp/21)
Secure Shell Protocol (ssh/22)
Teletype Network (telnet/23)
Simple Mail Transfer Protocol (SMTP/25)
Domain Name System Protocol (DNS/53)
Hypertext Transfer Protocol (http/80)
Hypertext Transfer Protocol Secure (https/443)
Microsoft Directory Services (microsoft-ds/445)
Remote Desktop Protocol (ms-wbt-server/3389
Viewer Remote Desktop (vnc/5900)

Enumerate Used Ports

There are multiple ways to review the ports used by the services in the operating systems, you can use netstat or lsof command to show all the listening ports. If you run the customized webserver example, you will see that port 80 is used by it as the following

pc@mac~% sudo lsof -i -P -n | grep -E "(LISTEN)"
Python    1544   www    3u  IPv4 0x0      0t0  TCP *:80 (LISTEN)

PCAP Example

The web server is listening on port 80. The client can connect to this web server using the network adapter IP, but they do not need to specify pot 80 in the web browser because it uses the protocol prefix HTTP. If the web server port is 6789, the client can do http://<Network_Adapter_IP>:6789

from http.server import SimpleHTTPRequestHandler
from socketserver import TCPServer
from io import BytesIO
from gzip import GzipFile
from datetime import datetime
from contextlib import suppress

with suppress(Exception):
    from netifaces import gateways, ifaddresses, AF_INET, AF_LINK
    print("The default network interface is: ",gateways()['default'][AF_INET][1])
    print("The default network interface mac address is: ",ifaddresses(gateways()['default'][AF_INET][1])[AF_LINK])

class Server(SimpleHTTPRequestHandler):
    def do_GET(self):
        compressed = False
        content = b'<HTML><h1>Hello World!</h1></HTML>'
        if len(content) > 0:
            if 'accept-encoding' in self.headers:
                if 'gzip' in self.headers['accept-encoding']:
                    bytes_ = BytesIO()
                    with GzipFile(fileobj=bytes_, mode='w', compresslevel=5) as f:
                        f.write(content)
                        f.close()
                        content = bytes_.getvalue()
                        compressed = True
        self.send_response(200)
        if compressed:
            self.send_header('content-encoding', 'gzip')
        self.send_header('content-length', len(content))
        self.end_headers()
        self.wfile.write(content)

    def log_message(self, format, *args):
        print("[{}] - {}:{} - {} {}".format(datetime.now().strftime("%m/%d/%Y %H:%M:%S"), self.client_address[0],self.client_address[1],args[0],args[1]))

TCPServer(('0.0.0.0', 80), Server).serve_forever()

Client initiates 3-way handshake

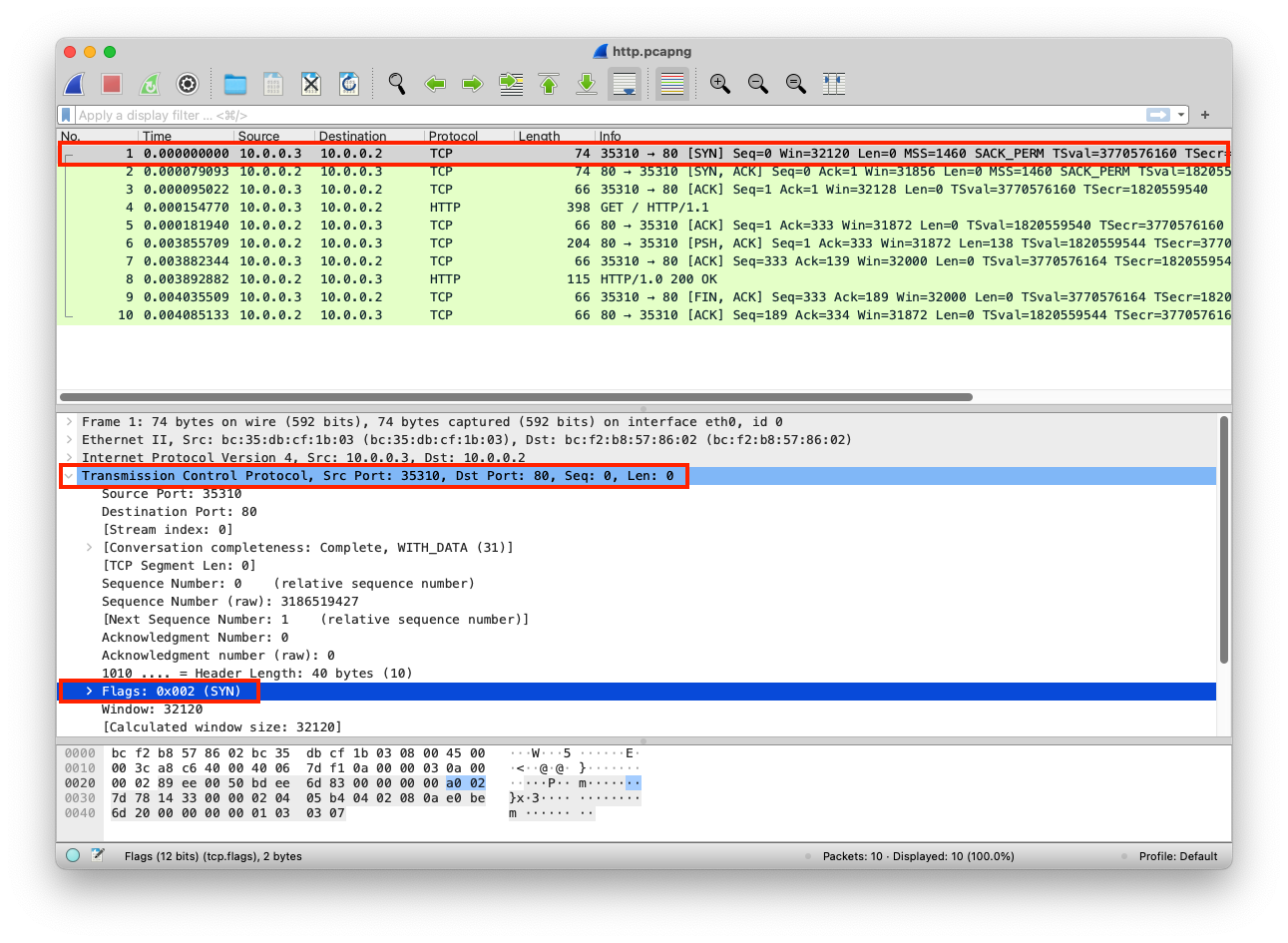

The client sends Synchronize Sequence Number (SYN) request

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Transport Layer	TCP	Segments	3 Way handshake Process (SYN)	Src Port: 35310 Dst Port: 80
Network Layer	IP	Packets	3 Way handshake Process (SYN)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Data Link Layer	Ethernet	Frames	3 Way handshake Process (SYN)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Physical Layer	Coax	Bits	01001000 01010100 01010100	01001000 01010100	01001000 01010100	01001000 01010100

The server receives the SYN request

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Physical Layer	Coax	Bits	01001000 01010100 01010100	01001000 01010100	01001000 01010100	01001000 01010100
Data Link Layer	Ethernet	Frames	3-Way handshake Process (SYN)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Network Layer	IP	Packets	3-Way handshake Process (SYN)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Transport Layer	TCP	Segments	3-Way handshake Process (SYN)	Src Port: 35310 Dst Port: 80

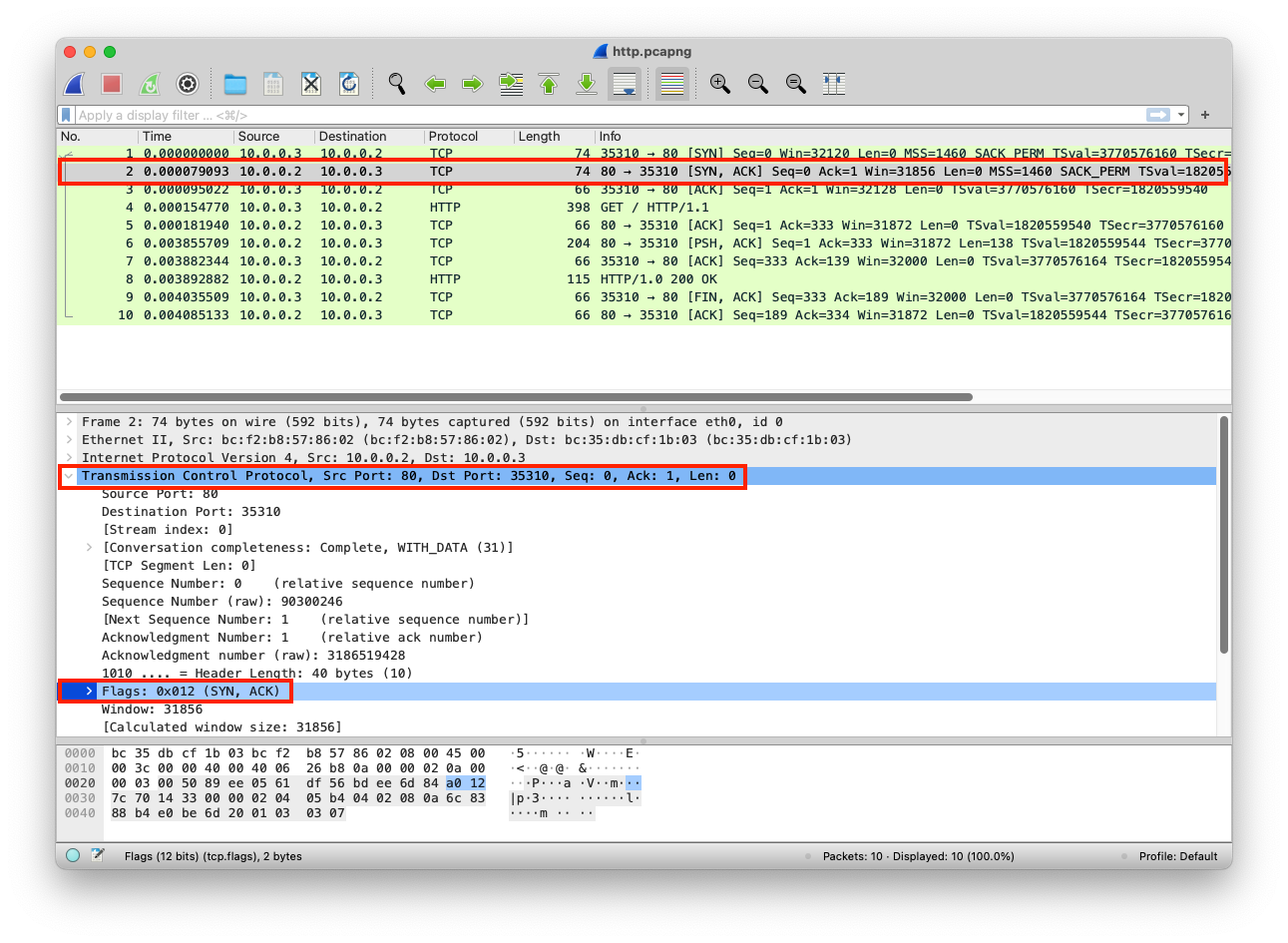

The server responds with Acknowledgement Sequence Number (SYN/ACK)

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Transport Layer	TCP	Segments	3-Way handshake Process (SYN/ACK)	Src Port: 80 Dst Port: 35310
Network Layer	IP	Packets	3-Way handshake Process (SYN/ACK)	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3
Data Link Layer	Ethernet	Frames	3-Way handshake Process (SYN/ACK)	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3	Src MAC: bc:f2:b8:57:86:02 Dst MAC: bc:35:db:cf:1b:03
Physical Layer	Coax	Bits	01001000 01010100 01010101	01001000 01010100	01001000 01010100	01001000 01010100

The client receives the SYN/ACK request

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Physical Layer	Coax	Bits	01001000 01010100 01010101	01001000 01010100	01001000 01010100	01001000 01010100
Data Link Layer	Ethernet	Frames	3-Way handshake Process (SYN/ACK)	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3	Src MAC: bc:f2:b8:57:86:02 Dst MAC: bc:35:db:cf:1b:03
Network Layer	IP	Packets	3-Way handshake Process (SYN/ACK)	Src Port: 80 Dst Port: 35310	Src IP: 10.0.0.2 Dst IP: 10.0.0.3
Transport Layer	TCP	Segments	3-Way handshake Process (SYN/ACK)	Src Port: 80 Dst Port: 35310

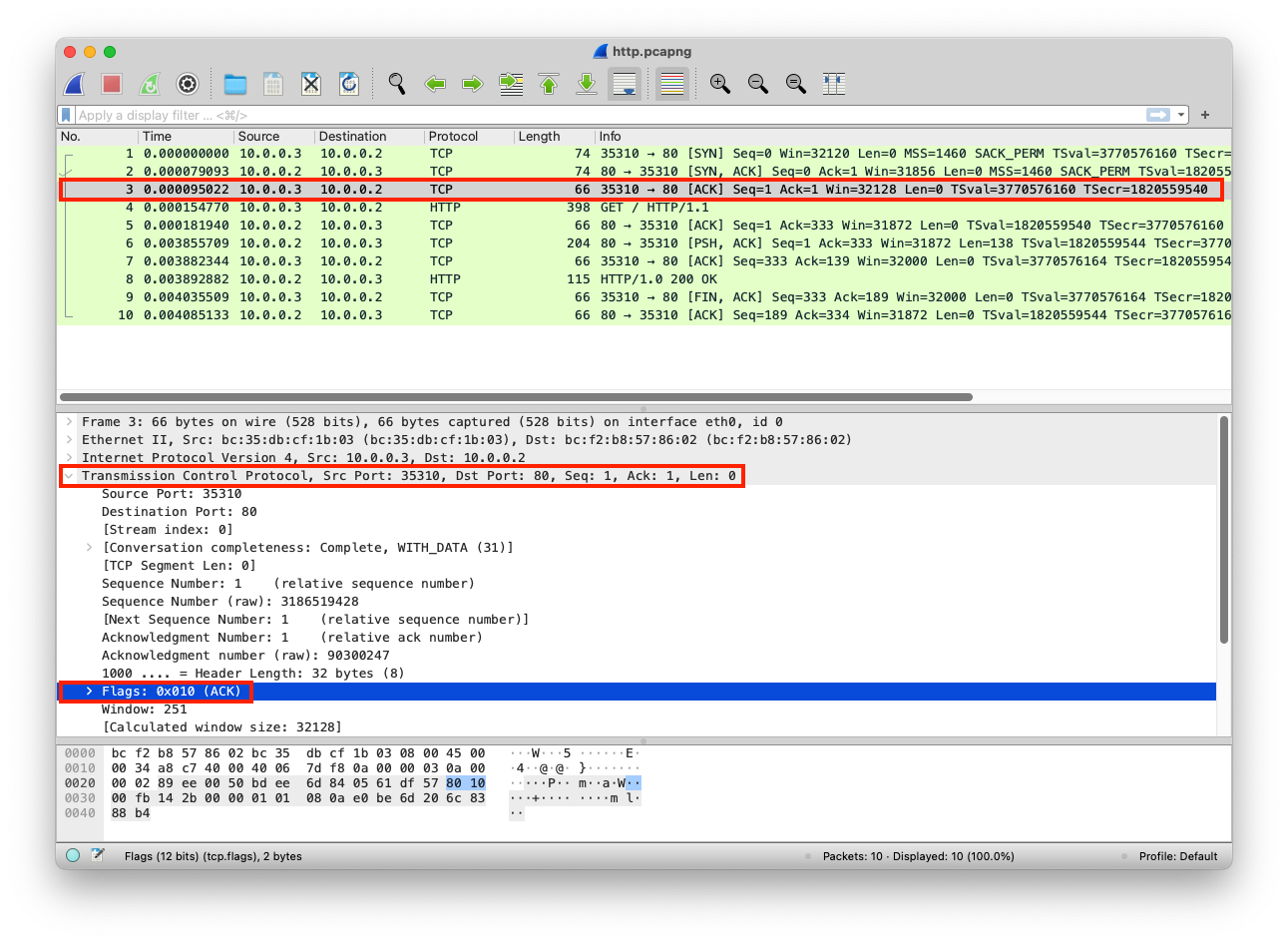

The client sends the ACK

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Transport Layer	TCP	Segments	3-Way handshake Process (ACK)	Src Port: 35310 Dst Port: 80
Network Layer	IP	Packets	3-Way handshake Process (ACK)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Data Link Layer	Ethernet	Frames	3-Way handshake Process (ACK)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Physical Layer	Coax	Bits	01001000 01010100 01010111	01001000 01010100	01001000 01010100	01001000 01010100

The server receives ACK request

Layer	Protocol	PDU	Info	Ports	IPs	MACs
Physical Layer	Coax	Bits	01001000 01010100 01010111	01001000 01010100	01001000 01010100	01001000 01010100
Data Link Layer	Ethernet	Frames	3-Way handshake Process (SYN/ACK)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2	Src MAC: bc:35:db:cf:1b:03 Dst MAC: bc:f2:b8:57:86:02
Network Layer	IP	Packets	3-Way handshake Process (SYN/ACK)	Src Port: 35310 Dst Port: 80	Src IP: 10.0.0.3 Dst IP: 10.0.0.2
Transport Layer	TCP	Segments	3-Way handshake Process (SYN/ACK)	Src Port: 35310 Dst Port: 80
